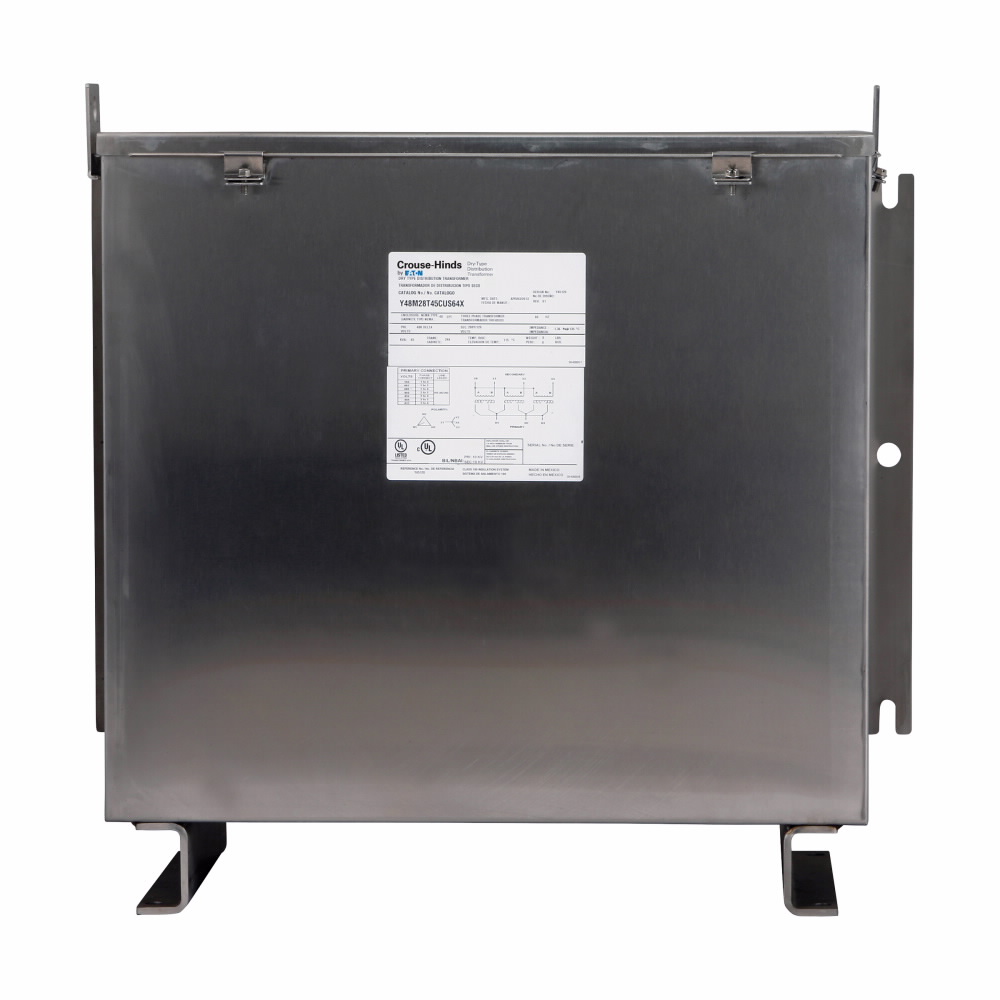

EATON Crouse-Hinds XDT3B150X Resin Encapsulated Dry-Type Hazardous Location Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 150 kVA Power Rating, 60 Hz, 3 ph
XDT3B150X
MFG #: XDT3B150X
$146,812.25
/ EA
Non-Stock Item
- Country of Origin: US
- Dimensions: 30 in L x 37.38 in W x 45.7 in H
- Enclosure Type: NEMA 4X
- Frequency Rating: 60 Hz
- Housing Material: Stainless Steel
- Insulation: 180 deg C
- Manufacturer Name: Eaton
- Phase: 3
- Power Rating: 150 kVA
- Primary Voltage: 480 VAC
- Secondary Voltage: 208Y/120 VAC
- Series: XDT
- Temperature Rating: 115 deg C
- Type: Resin Encapsulated Dry-Type
XDT dry-type transformers provide safe and efficient electric power distribution in the most extreme harsh and hazardous locations. XDT Transformers are designed to operate where volatile flammable liquids or gases are handled, processed or used and where ignitable concentrations of gases or vapors are normally prevented by positive mechanical ventilation, such as refineries, chemical and petrochemical plants, mining, corrosive process facilities and indoor/outdoor industrial applications.
- Item Features
- Application
- Standards
- Resin-encapsulated core-coil assembly for reliable performance in extreme environments
- NEMA 4X enclosures provide essential ingress protection
- 180 deg C insulation system with 115 deg C winding temperature rise creates optimal loading capabilities
- Copper windings
Refineries, Chemical and Petrochemical Plants, Mining, Corrosive process facilities, Indoor and outdoor Industrial Applications
Class I, Division 2, Groups A, B, C, D|cUL to C22.2 No 66 and C22.2 No 213-M1987|UL 1604
