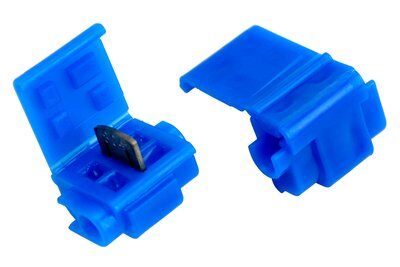

Scotchlok™ 7100167045 Flame-Retardant Moisture-Resistant Self-Stripping Electrical Connector, 14 AWG (Tap)/18 to 16 AWG (Run) Wire Stranded Wire, Brass
7100167045
MFG #: 7100167045
$1.17
/ EA
Non-Stock Item
- Color: Blue
- Country of Origin: US
- Finish: Tin Plated
- Manufacturer Name: 3M
- Material: Brass
- Specifications: 0.145 in Dia Max Insulation, Polypropylene Insulated
- Temperature Rating: 194 deg F
- Type: Flame-Retardant Moisture-Resistant Self-Stripping
- Voltage Rating: 600 VAC
- Wire Size: 14 AWG (Tap)/18 to 16 AWG (Run)
- Wire Type: Stranded
3M™ Scotchlok™ Insulation Displacement Connector 804 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated, self stripping and offers a moisture resistant seal.
- Item Features
- Standards
- Suggested application tool is e-9bm crimping tool
- 2-port configuration
- Independently crimps the barrel and grip on insulated and non-insulated terminals and connectors
- Use for control circuits, fixtures, appliances, signals, pa systems and automotive/marine/rv wiring
- Operating temperature 194f (90c)
- 600 v maximum building wire,
- 1000 v maximum signs and fixtures
RoHS Compliant|UL Listed
