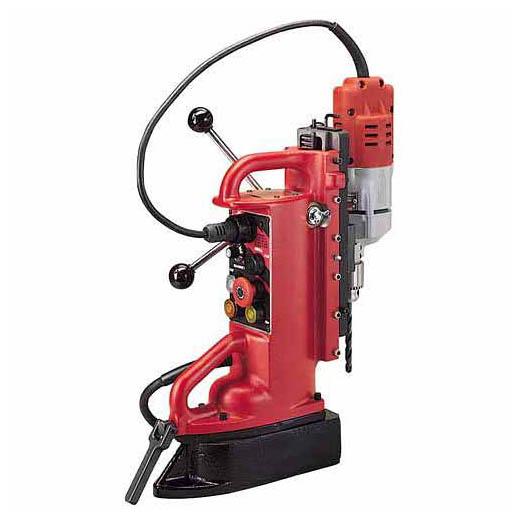

Milwaukee® 4204-1 Adjustable Position Electromagnetic Drill Press, 1/2 in Chuck, 1-1/4 hp, 1-1/4 in Drill to Center From Base, 600 rpm Spindle Speed, 120 VAC
4204-1
MFG #: 4204-1
$3,700.38
/ EA
Non-Stock Item
- Amperage Rating: 7.2 A
- Chuck Size: 1/2 in
- Country of Origin: US
- Drill Point Pressure: 1610/1650 lb
- Drill to Center From Base: 1-1/4 in
- Horsepower: 1-1/4 hp
- Manufacturer Name: Milwaukee Tool
- Number of Spindle Speeds: 1
- Overall Height: 25-1/4 in
- Request For Quote: No
- Spindle Speed: 600 rpm
- Spindle Travel: 9 in
- Type: Adjustable Position
- Voltage Rating: 120 VAC
This combination unit features the 4203 adjustable position, variable speed base and the 4253-1 1/2 in. drill motor. All you need is a bit and you are ready to drill into any ferrous material 1/2 in. and thicker.
- Includes
- Item Features
- Warranty
4203 Electromagnetic Drill Press Base, 4253-1 1/2 in Motor, 6 ft Safety Chain, 2Y325 Chuck and 2Y349 Key
- Powerful 7.2 A motor, engineered for the toughest applications, delivering 600 rpm
- 1/2 in capacity, taps up to 5/8 in/18 threaded holes (5/8 - 11 and 1/2 - 13 taps are not recommended)
- Maximum force develops up to 1650 lb of drill point pressure with a 1 in steel plate
- Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
- Line lockout prevents tool from operating if voltage is restored to an interrupted line
- Motor magnet lockout prevents de-mag during operation
- Full wave holding power
- Grounded construction
- 5/8-18 table load capacity
Limited Lifetime
