Coffing® Hoists

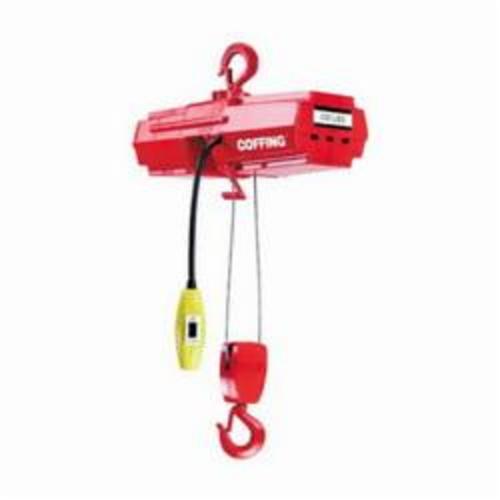

Coffing® Hoists 07612W EMW Double Reeving Electric Wire Rope Hoist, 500 lb Load, 1/8 in Chain/Rope, 10 ft H Lifting, 1/6 hp Power Rating, 115 VAC

07612W MFG #: 07612W
$2,939.20 / EA
Non-Stock Item
Coffing® Hoists 07612W EMW Double Reeving Electric Wire Rope Hoist, 500 lb Load, 1/8 in Chain/Rope, 10 ft H Lifting, 1/6 hp Power Rating, 115 VAC
  • Amperage Rating: 0.125 A
  • Brake Type: AC Disc/Electromagnetic
  • Chain/Rope Size: 1/8 in
  • Control Type: 1-Speed/NEMA 1, 4 Control Station
  • Country of Origin: US
  • Dimensions: 4-3/8 in H x 6-3/8 in W
  • Headroom: 13-3/4 in
  • Lift Speed: 10 fpm
  • Lifting Height: 10 ft
  • Load Capacity: 500 lb
  • Manufacturer Name: Columbus McKinnon
  • Minimum Between Hooks: 13-3/4 in
  • Power Rating: 1/6 hp
  • Series: EMW
  • Type: Double Reeving
  • Voltage Rating: 115 VAC
  • Weight: 21 lb
Coffing® Hoists Electric Wire Rope Hoist, Double Reeving, Series: EMW, 500 lb, 1/8 in, 10 ft Lifting Height, 10 fpm Lift Speed, 13-3/4 in Minimum Between Hooks, 1-Speed/NEMA 1, 4 Control Station Control, AC Disc/Electromagnetic Brake, 1/6 hp, 115 VAC, 0.125 A, 13-3/4 in Headroom, 21 lb, 4-3/8 in H x 6-3/8 in W
QTY
Add to List
  • Standards
  • Item Features
UL Listed
  • Rated loads 300 and 500 lb 10 ft lift with 6 ft push button cord standard
  • Swivel top and bottom hooks with safety latches standard suspensions
  • Provided with grounded 3-prong plug for easy installation in any standard 115 VAC outlet
  • Aluminum housing provides lightweight and compact strength and portability. weighs less than 25 lb
  • Upper and lower limit switches on chain models and upper paddle limit switch on wire rope model regulates load travel
  • Electromagnetic brake is quick acting for positive load control
  • Thermal motor protection standard to prevent overheating
  • Rated for intermittent duty applications (10 min run time per hour maximum)
  • LCC-05 chain container (shown) available for EMC models
