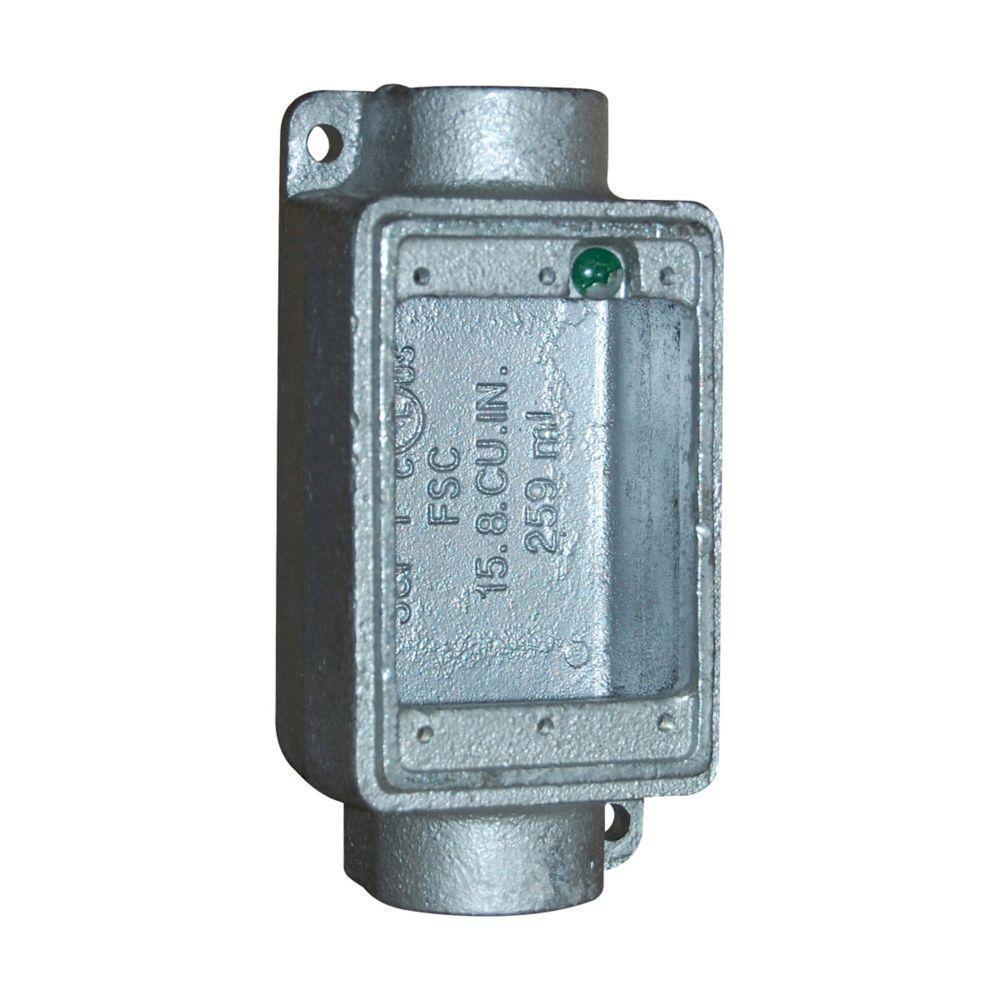

Crouse-Hinds Condulet® FSCM3 2-Entry Type FSC Shallow Conduit Device Box With Mounting Lug, Ground Screw, 1 in Trade, 1 Gang, Malleable Iron, Electro-Plated Zinc
FSCM3
MFG #: FSCM3
$157.09
/ EA
Non-Stock Item
- Country of Origin: CN
- Dimensions: 6-1/32 in H x 3-5/8 in W x 1-7/8 in D
- Finish: Electro-Plated Zinc
- Manufacturer Name: Eaton
- Material: Malleable Iron
- Mounting Type: Surface
- Number of Gangs: 1
- Suitable For Use With: Threaded Rigid/IMC Conduit
- Trade Size: 1 in
- Type: 2-Entry Type FSC Shallow
Crouse-Hinds series FS and FD device boxes are installed in non-hazardous area conduit systems to accommodate wiring devices, act as pull boxes or provide openings for taps and splices. They are suitable for use in wet locations when used with gasketed covers. FS and FD device boxes are available in two box depths with a wide variety of gang configurations, hub configurations and hub sizes. They are manufactured in cast iron, aluminum, stainless steel and malleable iron. Malleable iron boxes are also available with a hot dip galvanized finish for added corrosion protection against road salt and other harsh environmental factors.
- Item Features
- Application
- Standards
- Green ground screw is located on the flange of the box for easy ground wire termination and is standard on boxes
- Suitable for use in wet locations when used with gasket and flat blank covers
- Tapered threaded hubs with integral bushing
- Malleable iron construction provides high tensile strength for strong, dependable service
- Ample wiring room
- Covers are individually bagged and supplied with screws
- (1) each end cable entry
Accommodate wiring devices, act as pull boxes for conductors in a conduit system, provides openings to make splices and taps in conductors, applications where box is subjected to rough use, indoor and outdoor applications, ordinary/non-hazardous locations
cULus Listed|cCSAus Certified|UL 514|CSA C22.2|Federal Specification W-C-5860|NEC Certified|CEC Certified
